PXQ系列撬装泡沫灭火装置

PXQ series skid mounted foam fire extinguishing device

    PXQ系列撬装泡沫消防装置是一个小型的泡沫灭火系统，它由移动吊装设备房、消防泵组、泡沫比例混合装置、阀件和管路、泡沫发生器等整体撬装组成的。所有设备均放置在一个底撬中，可以整体移动。并且移动吊装设备房具备防雨、防嗮功能，同时撬装中的各种设备也均进行过防潮防锈蚀处理，所以完全能适应户外的作业环境。

    PXQ series skid mounted foam fire fighting device is a small foam fire extinguishing system, which is composed of mobile lifting equipment room, fire pump set, foam proportioning device, valves and pipelines, foam generator and other integral skids. All equipment are placed in a bottom skid and can be moved as a whole. In addition, the mobile lifting equipment room has rain-proof and sun-proof functions. At the same time, all kinds of equipment in the skid-mounted have also been treated with moisture-proof and rust-proof, so it can fully adapt to the outdoor operating environment.

PXQ系列撬装泡沫灭火装置

PXQ series skid mounted foam fire extinguishing device

PXQ撬装泡沫灭火装置的适用范围：

Applicable scope of PXQ series skid mounted foam fire extinguishing device:

    PXQ撬装泡沫灭火装置既可以喷射水，也可以喷射泡沫，常用于扑救A类固体物质火灾和B类易燃液体火灾。它是一套完整的消防灭火系统，系统动力依靠柴油就可以运转，不受现场动力条件影响。设备整体防晒、防雨雪，又方便移动，能很好的适应户外环境。

     PXQ series skid mounted foam fire fighting device can spray water, but also can spray foam, often used to put out a class solid fire and B class flammable liquid fire. It is a complete fire-fighting system, the system power can rely on diesel operation, not affected by the site power conditions. The equipment is sun-proof, rain-proof and snow-proof as a whole, and convenient to move, can be well adapted to outdoor environment.

    它广泛应用于油田开采、钻井平台、化工、机场、电站、隧道等新建项目的户外作业。

    It is widely used in outdoor operations of new projects such as oil field exploitation, drilling platforms, chemical industry, airports, power stations, tunnels, etc.

PXQ撬装泡沫灭火装置的工作原理：

Working principle of PXQ series skid mounted foam fire extinguishing device:

    ①当设备使用水灭火时：

     When the equipment uses water to extinguish the fire:

    消防水源经柴油机消防泵组加压后，直接输送至消防管道末端，经消防水带到达终端泡沫枪，泡沫枪喷水进行灭火。

    After being pressurized by diesel engine fire pump set, the fire water source is directly transmitted to the end of the fire pipeline, and then reaches the terminal foam gun through the fire hose. The foam gun sprays water to extinguish the fire.

    ②当设备使用泡沫灭火时：

    When the equipment uses foam to extinguish the fire:

    消防水源经柴油机消防泵组加压后输送至泡沫比例混合装置，压力水一路进泡沫罐挤压胶囊内泡沫药剂进入主管道，一路在主管道中与泡沫药剂混合，形成泡沫混合液，经末端2个泡沫枪喷射泡沫进行灭火。

    The fire water source is pressurized by the diesel engine fire pump set and delivered to the foam proportioning device. One part of the pressure water enters the foam tank to squeeze the foam agent into the main pipe, and the other part of the pressure water is mixed with the foam agent in the main pipe to form foam mixture, which is sprayed with foam through two foam guns at the end to extinguish the fire.

PXQ系列撬装的操作方法：

Operation method of PXQ series skid mounted foam fire extinguishing device:

    ①当使用水灭火时：（When using water to extinguish fire:）

    1.用DN100消防水带连接水源及消防泵进水口；（Use DN100 fire hose to connect water source and fire pump inlet;）

    2.设备出水口连接消防水带，水带另一头连接泡沫枪；（The equipment outlet is connected to the fire hose, and the other end of the hose is connected to the foam gun;）

    3.打开设备管路上的所有阀门；（Open all valves on the equipment pipeline;）

    4.启动柴油机消防泵组。（Start the diesel fire pump set.）

    ②当使用泡沫灭火时：（When extinguishing with foam:）

    1.用DN100消防水带连接水源及消防泵进水口；（Use DN100 fire hose to connect water source and fire pump inlet;）

    2.设备出水口连接消防水带，水带另一头连接泡沫枪；（The equipment outlet is connected to the fire hose, and the other end of the hose is connected to the foam gun;）

    3.打开设备管路上的所有阀门和压力式比例混合装置上的进水阀和出液阀；（Open all valves on the equipment pipeline and the inlet and outlet valves on the pressure-type proportional mixing device;）

    4.启动柴油机消防泵组。（Start the diesel fire pump set.）

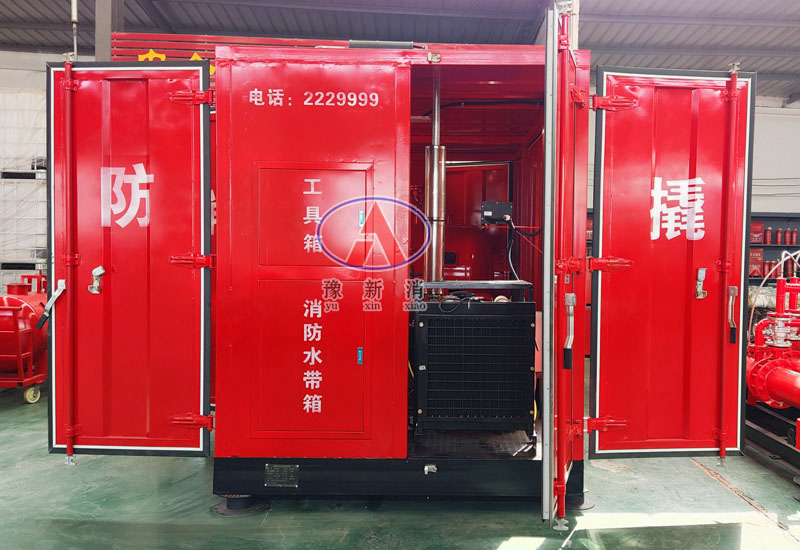

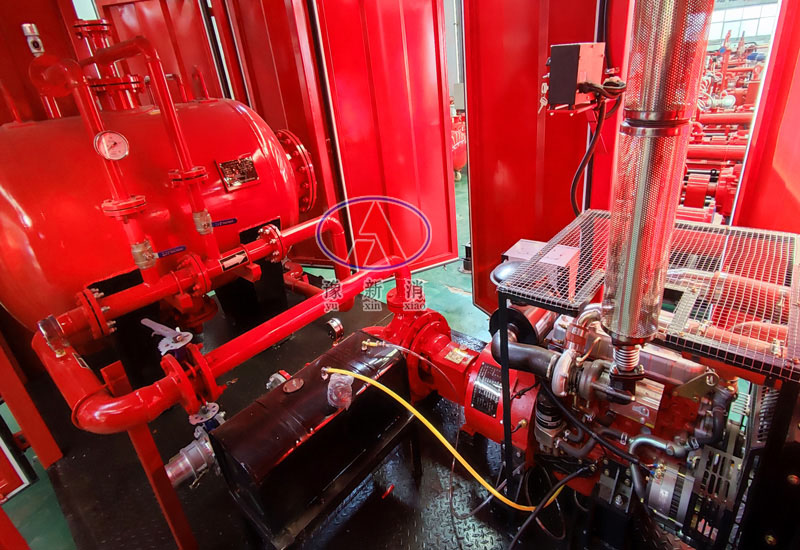

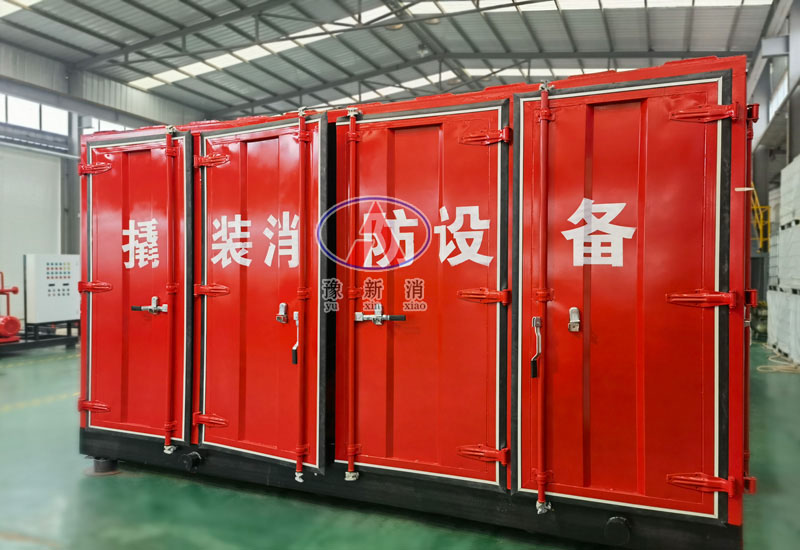

产品展示Product display
